Cryogenic Liquid Oxygen Plant

We are world class manufacturer and exporter of cryogenic liquid oxygen gas generation plant for medical and industrial uses.

Specification
  • Model/Capacity :50 Liter/hour To 10,000 Liter/hour
  • Purity : OXYGEN - 99.7% & NITROGEN - 99.99%
  • Technology : ING L.&A. BOSCHI, ITALY (Since 1930)

Are you interested in purchasing Industrial Liquid Oxygen Plant for producing medical and industrial grade LIQUID OXYGEN? Get the latest commercial offer for design, installation, testing and commissioning.

Key Features of UBTL Series LOX Plants

  • 100% stainless steel column as per ASME standards.
  • Low Power Consumption. No downtime as liquid oxygen stored in Tank.
  • Low pressure Rotary air compressor by ATLAS COPCO which are the best in the world.
  • New Technology with 100% stainless steel vacuum insulated condenser
  • New Design 100% stainless steel head and cold parts of the cryogenic expander.
  • New Technology liquid pump with 100% super insulated stainless steel cold end.
  • High purity output upto 99.7%.

Why you must Choose Liquid Oxygen Plant?

Liquid oxygen (LOX) plant uses the most advanced cryogenic air separation technology for producing high purity O2 in various capacities ranging from 10litre/hr to 1000litre/hr. Moreover, LOX plant also provides the option to generate liquid nitrogen as well. It is amazing advantage to have an option to generate 50% O2 and 50% LN2 of the total installed capacity or in whatever measure your requirements dictate. This is one of the many reasons that choosing a LOX plant is always beneficial.

Uses Highly Efficient Cryogenic Technology

Though there are other technologies available but none can match the efficiency and effectiveness of cryogenic distillation. It is the only technique has the capacity to generate oxygen with purity up to 99.7% ideal for all types of applications including medical. It ensures uninterrupted supply of oxygen 24*7 requiring little to no maintenance.

Manufactured with High Quality Materials & Components

We manufacture liquid O2 plant with ASME certified materials and components procured only from the reputed European OEMs. The most important component of the plant is air separation column which is responsible for driving around 60% of the plant’s performance. It is fabricated with 100% German stainless steel and argon welding for long term durability and reliability.

oxygen generation plant technical specification

Large Capacity Liquid Oxygen Generation Plants

A TYPE Range – 600 LITRES/hour to 1500 LITRES/hour (with liquid production LOX and LIN)

Production

UBTL-600

UBTL-700

UBTL-1000

UBTL-1500

Liquid Oxygen output (liters per hour)

235

350

470

590

Purity Oxygen (%)

99.7

99.7

99.7

99.7

Liquid nitrogen output(liters per hour)

290

435

578

700

Purity nitrogen (%)

99% to 99.999%or ppm

99% to 99.999%or ppm

99% to 99.999%or ppm

99% to 99.999%or ppm

Our large capacity liquid oxygen plant generates 100% liquid oxygen (LOX) and liquid nitrogen (LIN) for filling into cryogenic storage tanks. LOX plant can also produce 50% gas or 50% oxygen. Our LOX Plant or LIN Plant uses leak-proof stainless steel column and skid mounted version for high purity medical and industrial oxygen.

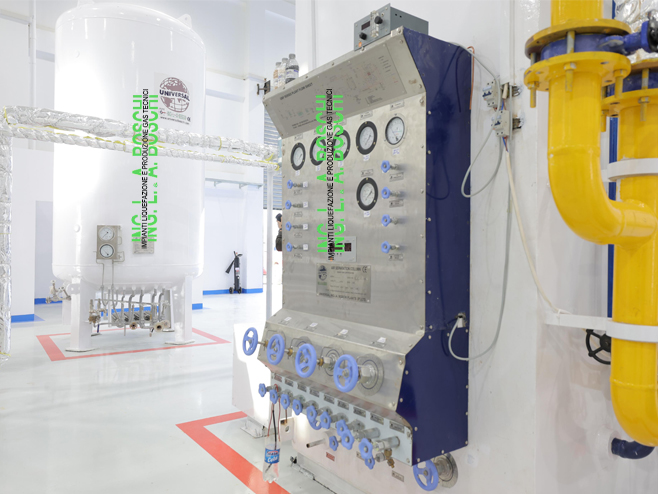

LOX LIN

600 m3/hr. (LOX/LIN) Plant

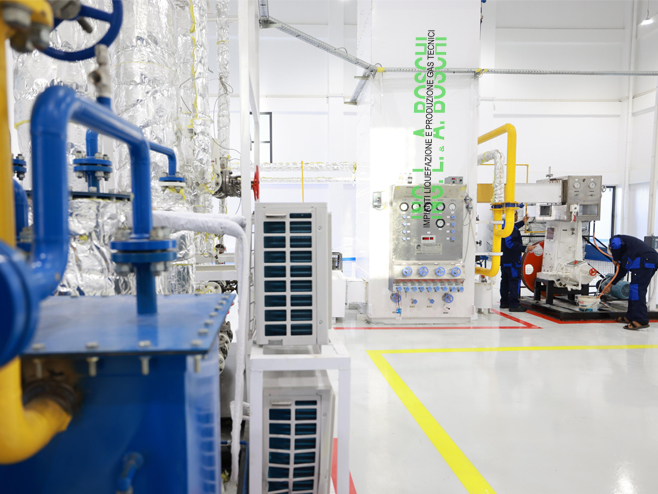

LOX

1000 m3/hr. (LOX) Plant
